-Putere de iesire maxima: 70W
-Eficienta ridicata de pana la 86%
-Protectii la intrare, scurt-circuit, supra-incarcare
-Indicator LED
-Testata pentru functionare in siguranta la capacitate 100%

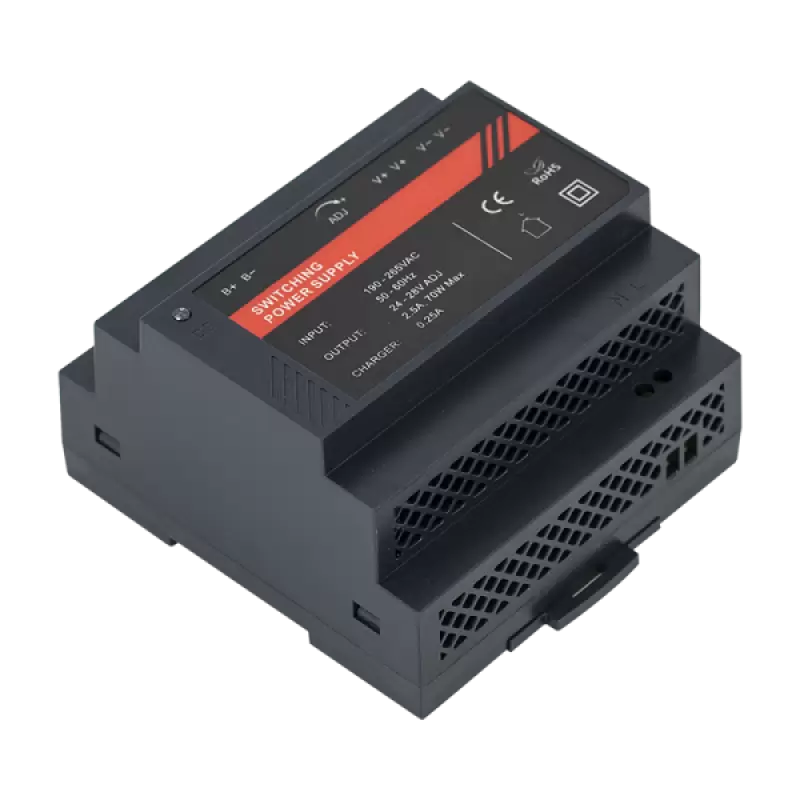

-Dimensiuni reduse, montare pe sina DIN

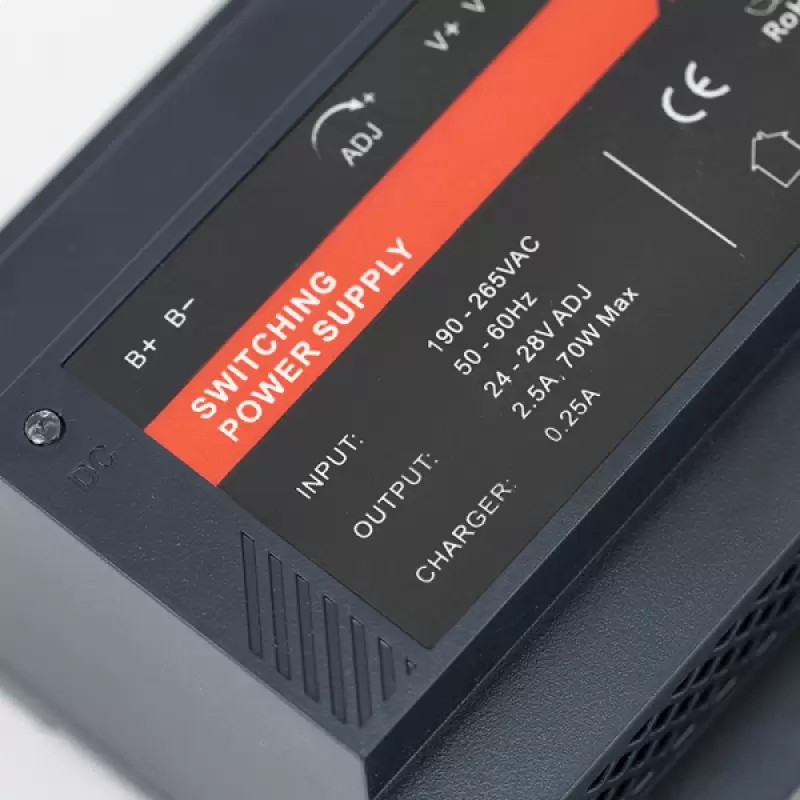

-Tensiune de intrare: 190-265Vca, 50/60Hz
-Tensiune de iesire (mod AC): 24-28Vcc ± 2%, ajustabila din potentiometru
-Tensiune de iesire (mod baterie): Egala cu tensiunea acumulatorului
-Curent maxim: 2.5A
-Putere maxima: 70W (se ia in calcul si 250mA curent de incarcare baterie)
-Tip sursa: Comutatie
-Eficienta (Typ.): >90%
-Ondulatii si zgomot: <200mVp-p
-Protectie intrare: 2A/ 250Vac siguranta fuzibila
-Protectie suprasarcina: 3A ± 5%
-Protectie descarcare baterie: 21Vcc ± 2%
-Tensiune incarcare baterie: 22-27.6Vcc ± 2%
-Protectie suprasarcina/ Protectie supra-tensiune/ Protectie scurtcircuit:
-“Hiccup“, sursa reporneste automat dupa remedierea problemei
