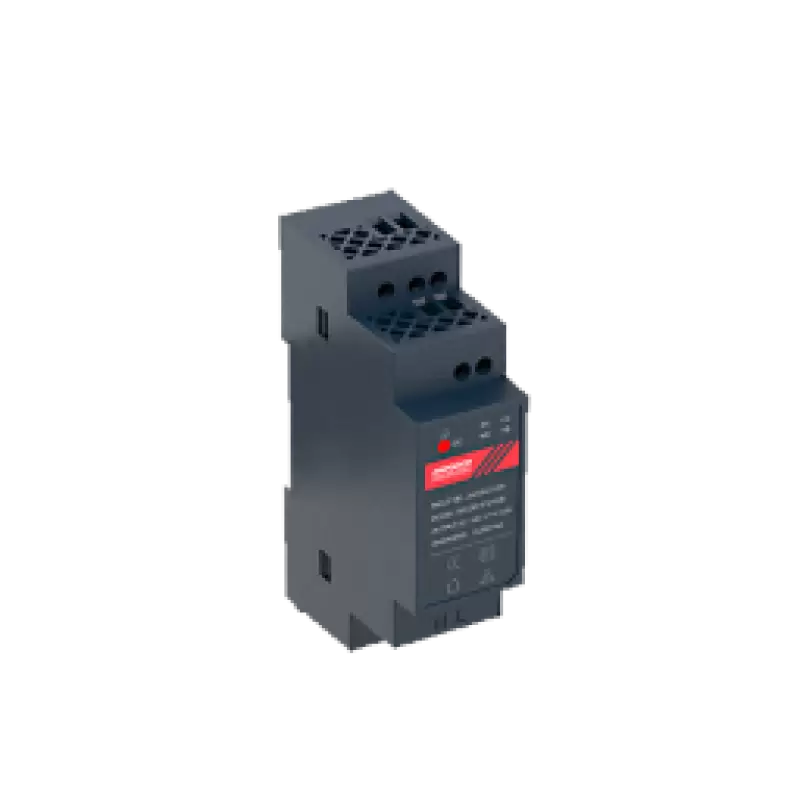

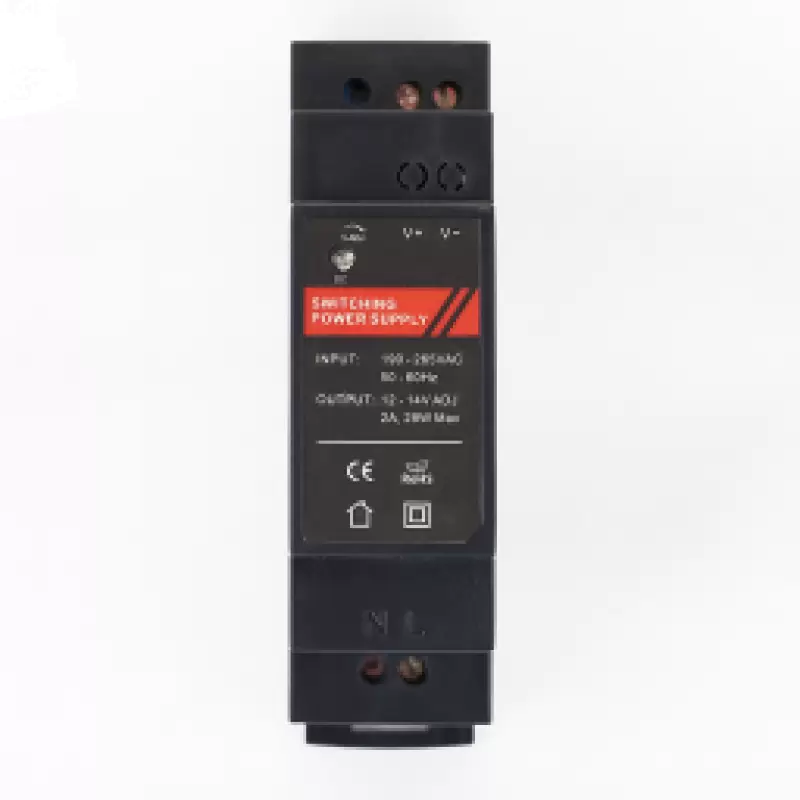

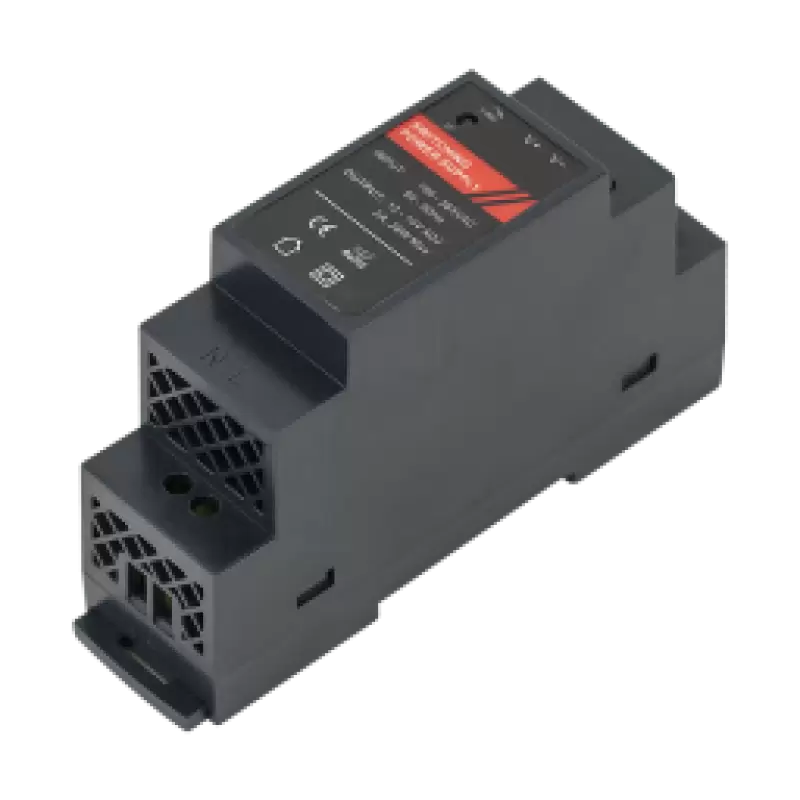

Sursa de alimentare 12VDC/2A, montare pe sina DIN , DR12024-01C .
DR12024-01C este o sursa de alimentare in comutatie, cu montare pe sina DIN si dimensiuni reduse. Datorita dimensiunilor reduse poate fi montata cu usurinta in cofretele electrice pentru a fi utilizata la alimentarea sistemelor de control acces, supraveghere video, alarma etc.
CARACTERISTICI :
-Putere de iesire maxima: 28W ;
-Eficienta ridicata de pana la 88% ;
-Protectii la intrare, scurt-circuit, supra-incarcare ;
-Indicator LED ;
-Testata pentru functionare in siguranta la capacitate 100% ;
-Dimensiuni reduse, montare pe sina DIN .
SPECIFICATII :
-Tensiune de intrare: 190-265 Vca ~ 50/60Hz ;
-Tensiune de iesire (mod AC): 12-14Vcc ±2%, ajustabila din potentiometru⋅;
-Consum maxim: 2A ;
-Putere maxima: 28W ;
-Tip sursa: comutatie ;
-Eficienta (Typ.): >88% ;
-Ondulatii si zgomot: <100mVp-p ;
-Protectie intrare: 2A/ 250Vac ;
-Protectie suprasarcina/ Protectie supra-tensiune/ Protectie scurtcircuit:“Hiccup“, sursa reporneste automat dupa remedierea problemei ;
-Indicator LED: verde - pornita, stins - fara alimentare ;
-Material: ABS negru ;
-Dimensiuni: 56(A) x 27(l) x 92(H)mm ;
-Temperatura de functionare: -20°C - +50°C ;
-Temperatura de depozitare: -30°C - +80°C ;
-Umiditate relativa: <80%⋅ ;
-Masa: 0.115kg .
