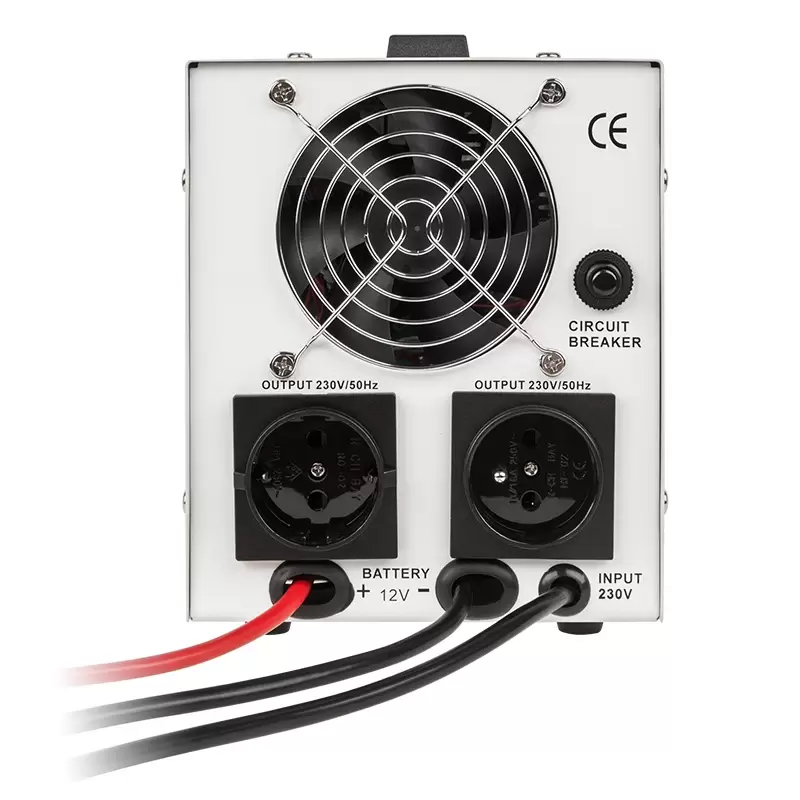

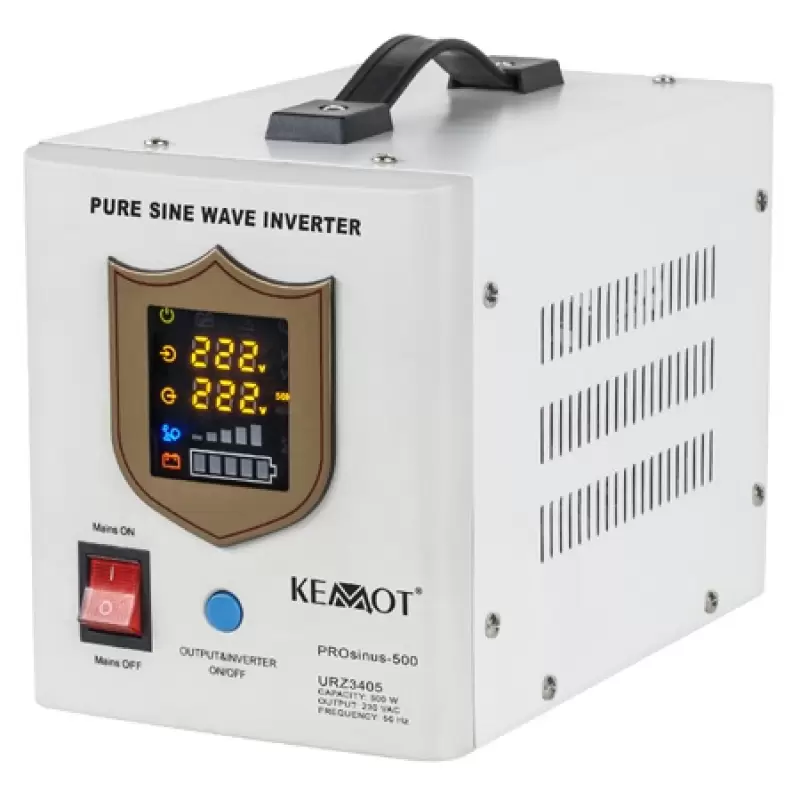

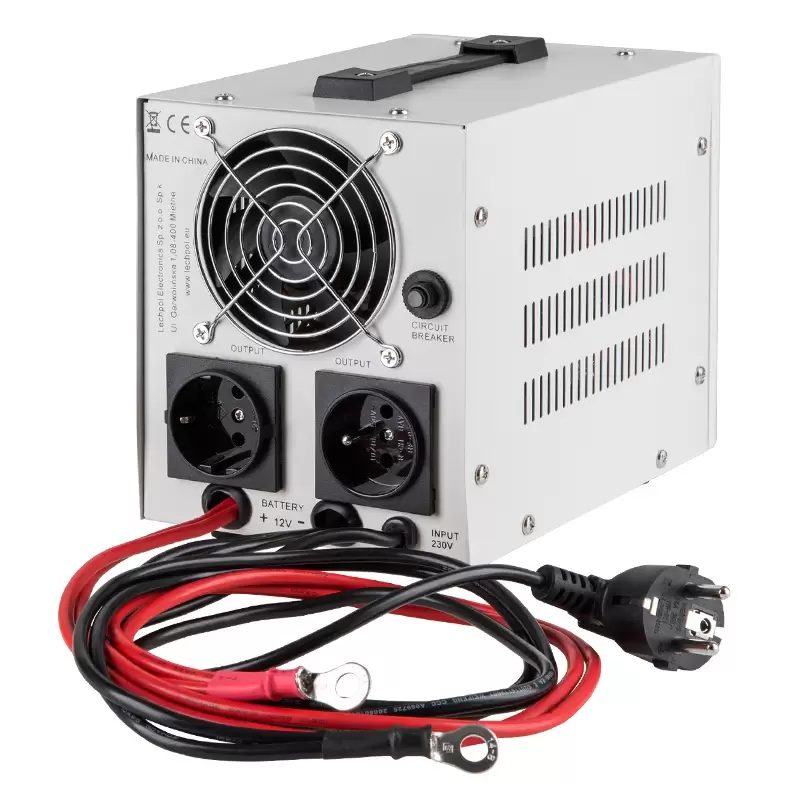

UPS pentru centrale termice sinus pur 500W , KEMOT URZ3405 , necesita acumulator 12V (neinclus) .
Dispozitivul poate funcționa in trei moduri:
-Ca o sursa de alimentare neintreruptibila cu funcție de incarcare - lasa tensiunea de la retea sa treaca catre sarcina si incarca bateria de 12 VDC externa
-Ca un redresor - incarca bateria externa (dispozitivul trebuie sa fie conectat la sursa de alimentare 230V AC)
-Ca convertor - convertește tensiunea DC de 12V DC baterie externa servit cu o tensiune variabila AC 230V
Dispozitivul este echipat cu un ecran clar și transparent cu LED-uri, cu indicarea starii de functionare
-Alimentare
-Tensiune de intrare
-Tensiunea si frecventa semnalului de ieșire
-Nivelul de incarcare a bateriei
Specificatii:
-Putere nominala: 500W
-Tip baterie: 12V DC (neinclusa)
-Tensiune maxima pe baterie: 15V DC
-Gama tensiunii de intrare: 180 ~ 275V AC
-Frecventa tensiunii de intrare: 45 ~ 60Hz
-Gama tensiunii de ieșire: 230V AC +/- 8%
-Frecvența de ieșire: 50 / 60Hz +/- 0.5Hz
-Forma tensiunii de ieșire: unda sinusoidala pura
-Randament: 85% (DC-AC)
-Incarcarea bateriei cu un curent max. de 10A
-Timp de comutare: <= 4ms
-Protectii: suprasarcina, scurtcircuit, supraincalzire
-Temperatura de operare: 0-40 C°
-Umiditate: 10-90%
-Greutate: 4.6 kg
-Dimensiuni (cm): 14.5 x 18 x 24
IMPORTANT PENTRU UTILIZARE:
- pentru pornirea invertorului, butonul rosu trebuie sa fie pus pe pozitia ON iar invertorul va porni AUTOMAT, fara apasarea pe nici un alt buton
